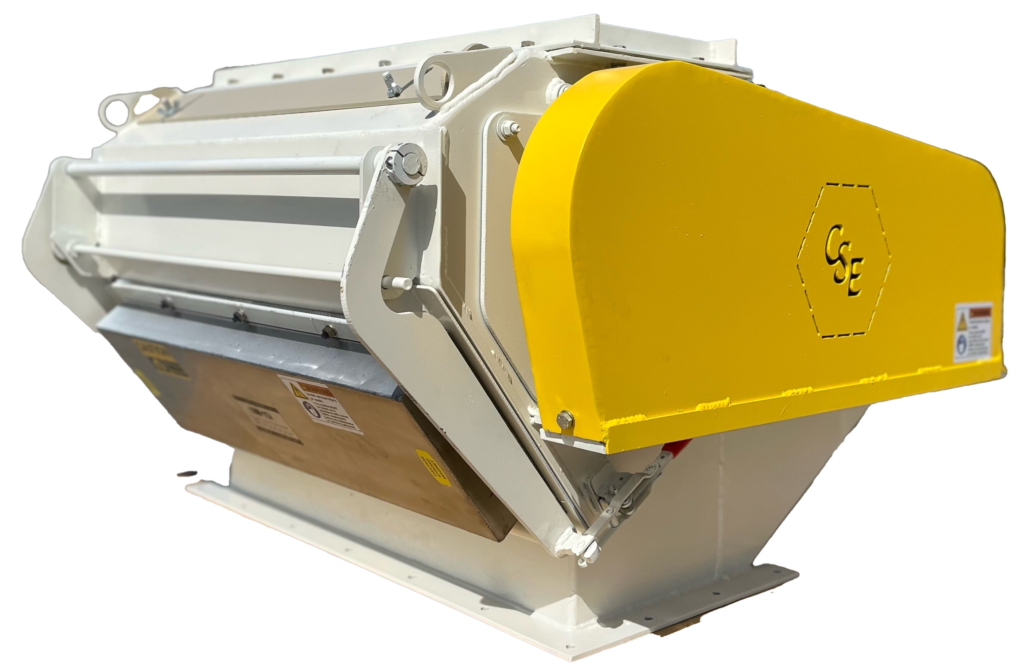

Rotary Feeders
CSE Bliss Rotary Feeders are designed to provide a steady, consistent supply of material across the full inlet of the hammer mill. This helps to achieve the hammer mill’s full grinding capabilities. The rotary feeders require a VFD to allow for adjustments of the feed rate to the hammer mill. The CSE Feeder is designed to out last our competitor feeders and reduce down time. The CSE rotary feeder has sloped air inlets that allow air to flow directly into the hammer mill.

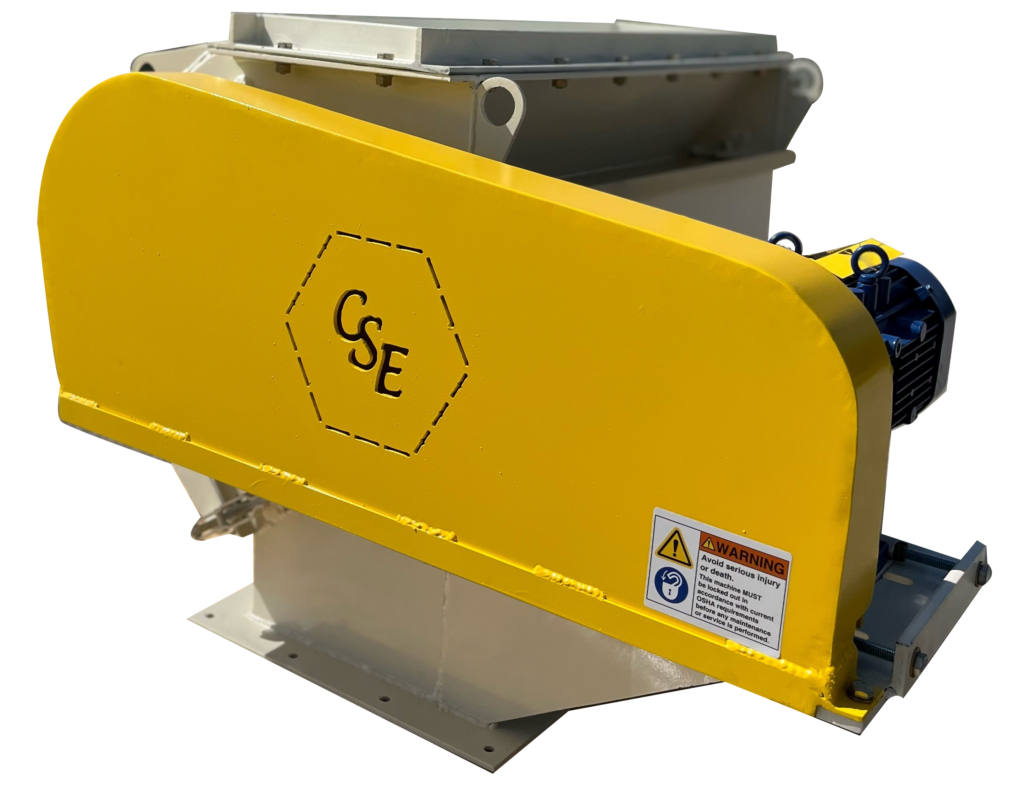

The housing is made from ¼” steel, and the inside that connects with the product is made of 3/8” steel. The 3/8” travels along the full circumference of the rotor, making all product contact areas last 2-3 times longer. The CSE Feeder comes with a built-in magnet protection system. This system comes in two options a manual clamp unit or an auto self-clean unit. The built-in magnet protection system allows us to build the feeder to directly replace any other feeder on the market. The CSE Feeder comes with Dodge bearings and Sumitomo gear drives. We can offer TEFC or TEXP motors.
Key Features
- Heavy Duty Magnet Protection
- Sloped Air Inlets (to prevent product build up)
- 3/8″ Thick Steel Product Contact Surface
- Auto Magnet Cleaning
Optional Features
- VFD
- Micro Switch to Indicate Magnet Open
- Heavy Duty Magnet
- High Intensity Magnet
- Rare Earth Magnet
- Explosion Proof Motor
- Welded Steel Pocket Rotor
Contact us to find out more about our rotary feeders:
Specifications: Feeder with 10″ diameter rotor
Model: | 2 Row | 3 Row | 4 Row | 5 Row | 6 Row | 7 Row | 8 Row | 9 Row | 10 Row | 11 Row | 12 Row | 14 Row | ||
Width: | 9″ | 12″ | 15″ | 20″ | 24″ | 30″ | 36″ | 36″ | 40″ | 40″ | 48″ | 60″ | ||
Bulk Density | Shaft RPM | |||||||||||||
Soybean hulls | 25 | 10min ____ 25max | 3,450 ____ 8,625 | 5,175 ____ 12,938 | 6,885 ____ 17,213 | 8,610 ____ 21,525 | 10,335 ____ 25,838 | 12,060 ____ 30,150 | 13,785 ____ 34,463 | 15,510 ____ 38,775 | 17,220 ____ 43,050 | 18,945 ____ 47,363 | 20,670 ____ 51,675 | 24,120 ____ 60,300 |
Feed Ration, Post Mix | 35 | 10min ____ 25max | 4,830 ____ 12,075 | 7,245 ____ 18,113 | 9,639 ____ 24,098 | 12,054 ____ 30,135 | 14,469 ____ 36,173 | 16,884 ____ 42,248 | 19,299 ____ 48,248 | 21,714 ____ 54,285 | 24,108 ____ 60,270 | 26,523 ____ 66,308 | 28,938 ____ 72,345 | 33,768 ____ 84,420 |
Wood Pellets | 40 | 10min ____ 25max | 5,520 ____ 13,800 | 8,280 ____ 20,700 | 11,016 ____ 27,540 | 13,776 ____ 34,440 | 16,536 ____ 41,340 | 19,296 ____ 48,240 | 22,056 ____ 55,140 | 24,816 ____ 62,040 | 27,552 ____ 68,880 | 30,312 ____ 75,780 | 33,072 ____ 82,680 | 38,592 ____ 96,480 |
Corn | 45 | 10min ____ 25max | 6,210 ____ 15,525 | 9,315 ____ 23,288 | 12,393 ____ 30,983 | 15,498 ____ 38,745 | 18,603 ____ 46,508 | 21,708 ____ 54,270 | 24,813 ____ 62,033 | 27,918 ____ 69,795 | 30,996 ____ 77,490 | 34,101 ____ 85,253 | 37,206 ____ 93,015 | 43,416 ____ 108,540 |
Wheat | 50 | 10min ____ 25max | 6,900 ____ 17,250 | 10,350 ____ 25,875 | 13,770 ____ 34,425 | 17,220 ____ 43,050 | 20,670 ____ 51,675 | 24,120 ____ 60,300 | 27,570 ____ 68,925 | 31,020 ____ 77,550 | 34,440 ____ 86,100 | 37,890 ____ 94,725 | 41,340 ____ 103,350 | 48,240 ____ 120,600 |
Specifications: Feeder with 14″ diameter rotor
Model: | 2 Row | 3 Row | 4 Row | 5 Row | 6 Row | 7 Row | 8 Row | 9 Row | 10 Row | 11 Row | 12 Row | 14 Row | ||
Width: | 9″ | 12″ | 15″ | 20″ | 24″ | 30″ | 36″ | 36″ | 40″ | 40″ | 48″ | 60″ | ||
Bulk Density | Shaft RPM | |||||||||||||
Soybean hulls | 25 | 10min ____ 25max | 5,610 ____ 14,025 | 8,520 ____ 21,300 | 11,535 ____ 28,838 | 14,445 ____ 36,113 | 17,460 ____ 43,650 | 20,265 ____ 50,663 | 23,715 ____ 59,288 | 26,205 ____ 65,513 | 29,430 ____ 73,575 | 32,025 ____ 80,063 | 35,580 ____ 88,950 | 40,545 ____ 101,363 |
Feed Ration, Post Mix | 35 | 10min ____ 25max | 7,854 ____ 19,635 | 11,928 ____ 29,820 | 16,149 ____ 40,373 | 20,223 ____ 50,558 | 24,444 ____ 61,110 | 28,371 ____ 70,928 | 33,201 ____ 83,003 | 36,687 ____ 91,718 | 41,202 ____ 103,005 | 44,835 ____ 112,008 | 49,812 ____ 124,530 | 56,763 ____ 141,908 |
Wood Pellets | 40 | 10min ____ 25max | 8,976 ____ 22,440 | 13,632 ____ 34,080 | 18,456 ____ 46,140 | 23,112 ____ 57,780 | 27,936 ____ 69,840 | 32,424 ____ 81,060 | 37,944 ____ 94,860 | 41,928 ____ 104,820 | 47,088 ____ 117,720 | 51,240 ____ 128,100 | 56,928 ____ 142,320 | 64,872 ____ 162,180 |
Corn | 45 | 10min ____ 25max | 10,098 ____ 25,245 | 15,336 ____ 38,340 | 20,763 ____ 51,908 | 26,001 ____ 65,003 | 31,428 ____ 78,570 | 36,447 ____ 91,193 | 42,687 ____ 106,718 | 47,169 ____ 117,923 | 52,974 ____ 132,435 | 57,645 ____ 144,113 | 64,044 ____ 160,110 | 72,981 ____ 182,453 |
Wheat | 50 | 10min ____ 25max | 11,220 ____ 28,050 | 17,040 ____ 42,600 | 23,070 ____ 57,675 | 28,890 ____ 72,225 | 34,920 ____ 87,300 | 40,530 ____ 101,325 | 47,430 ____ 118,575 | 52,410 ____ 131,025 | 58,860 ____ 147,150 | 64,050 ____ 160,125 | 71,160 ____ 177,900 | 81,090 ____ 202,725 |
